| Product Attribute | Attribute Value |
|---|---|
| Body Style | Puck |
| For Use With | Level Measurement |
| Function | Non-contact Level Measurement |
| IP Rating | IP65 |
| Measurement Range | 0.66-26.2 ft |
| Mounting Type | NPT 2 in |
| Output | 4-20 mA |
| Sensing Mode | Ultrasonic |
| Series | |
| Special Features | LCD Display |
| Supply Voltage | 12-28 VDC |
| Termination | Cable |
| Type | Level Transmitter |
Overview

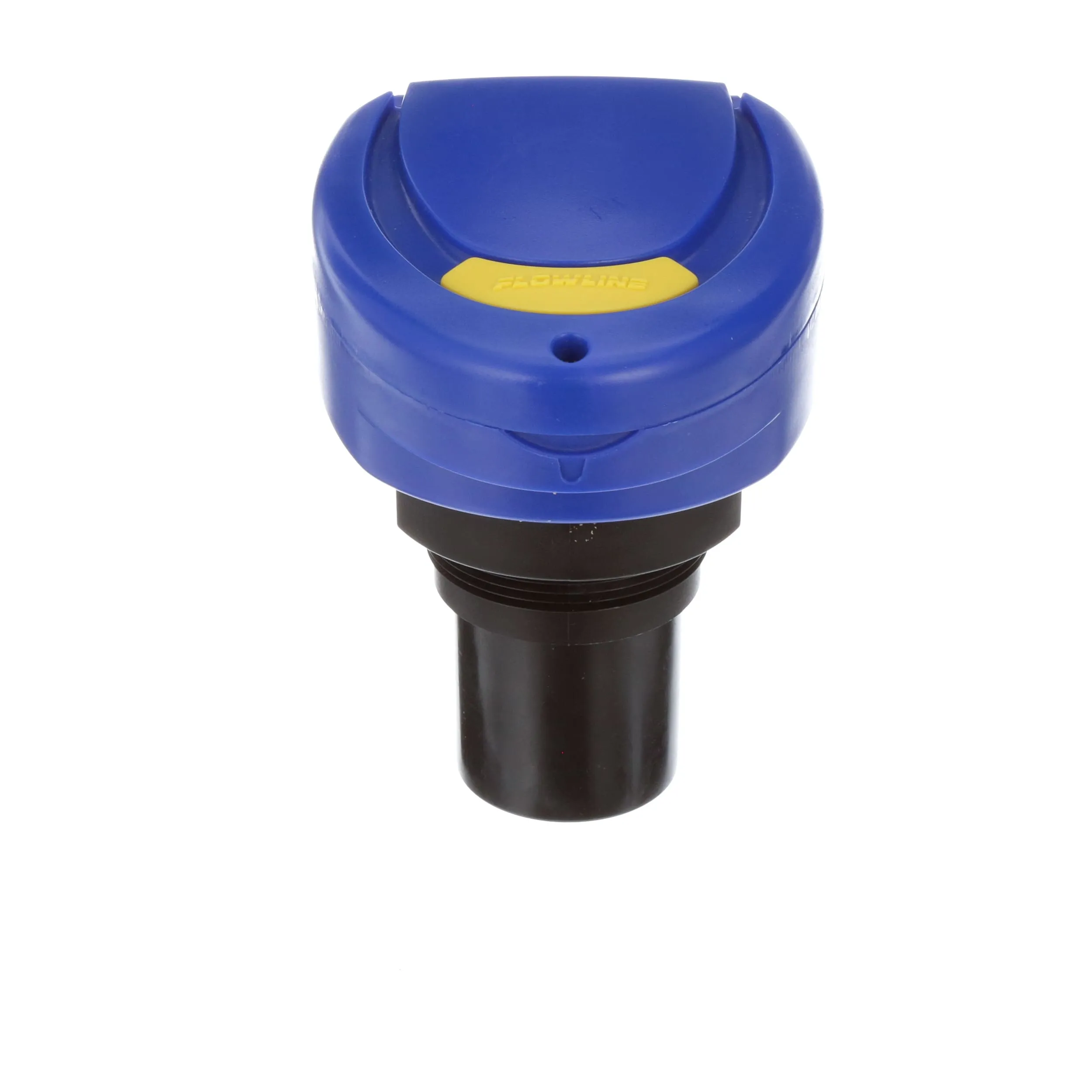

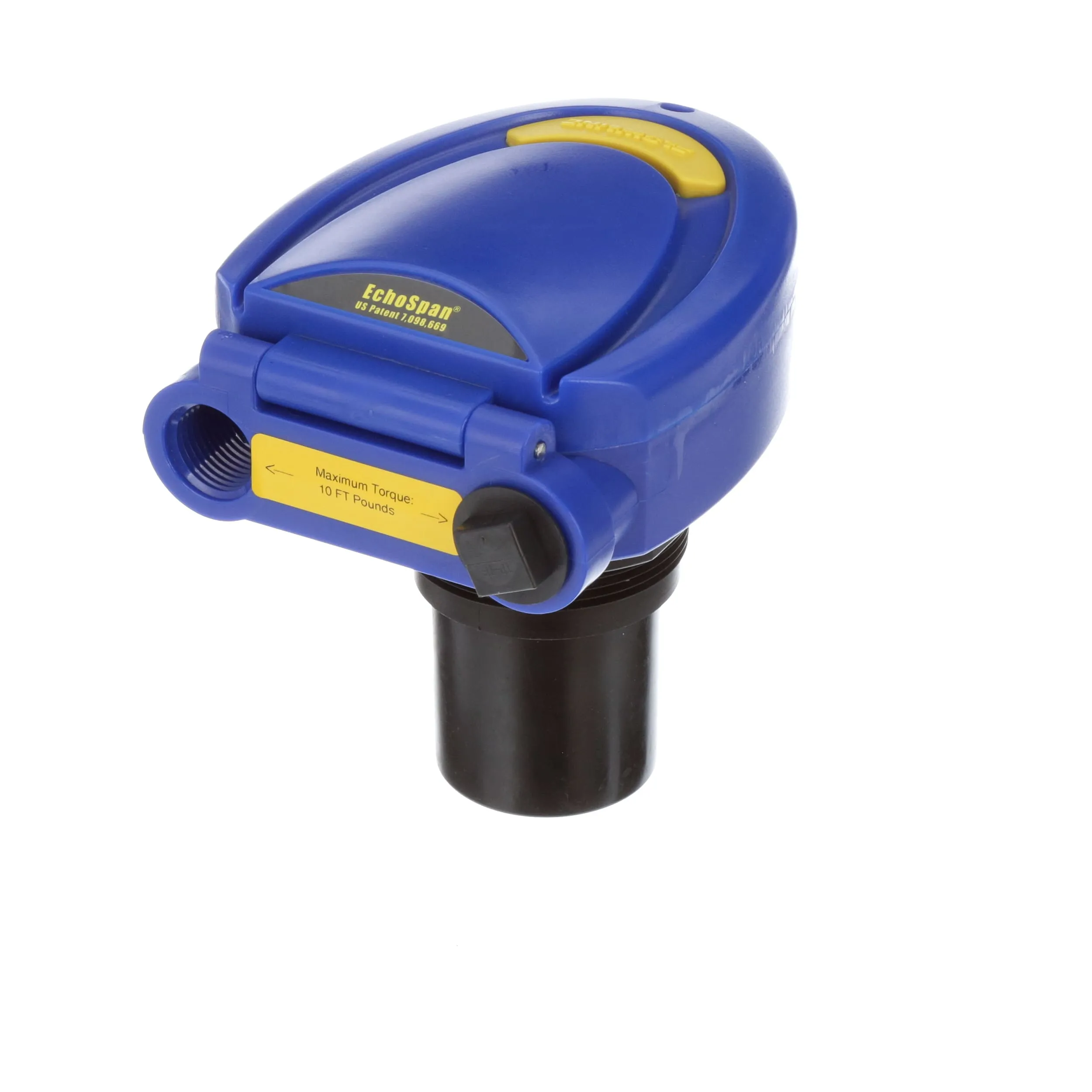

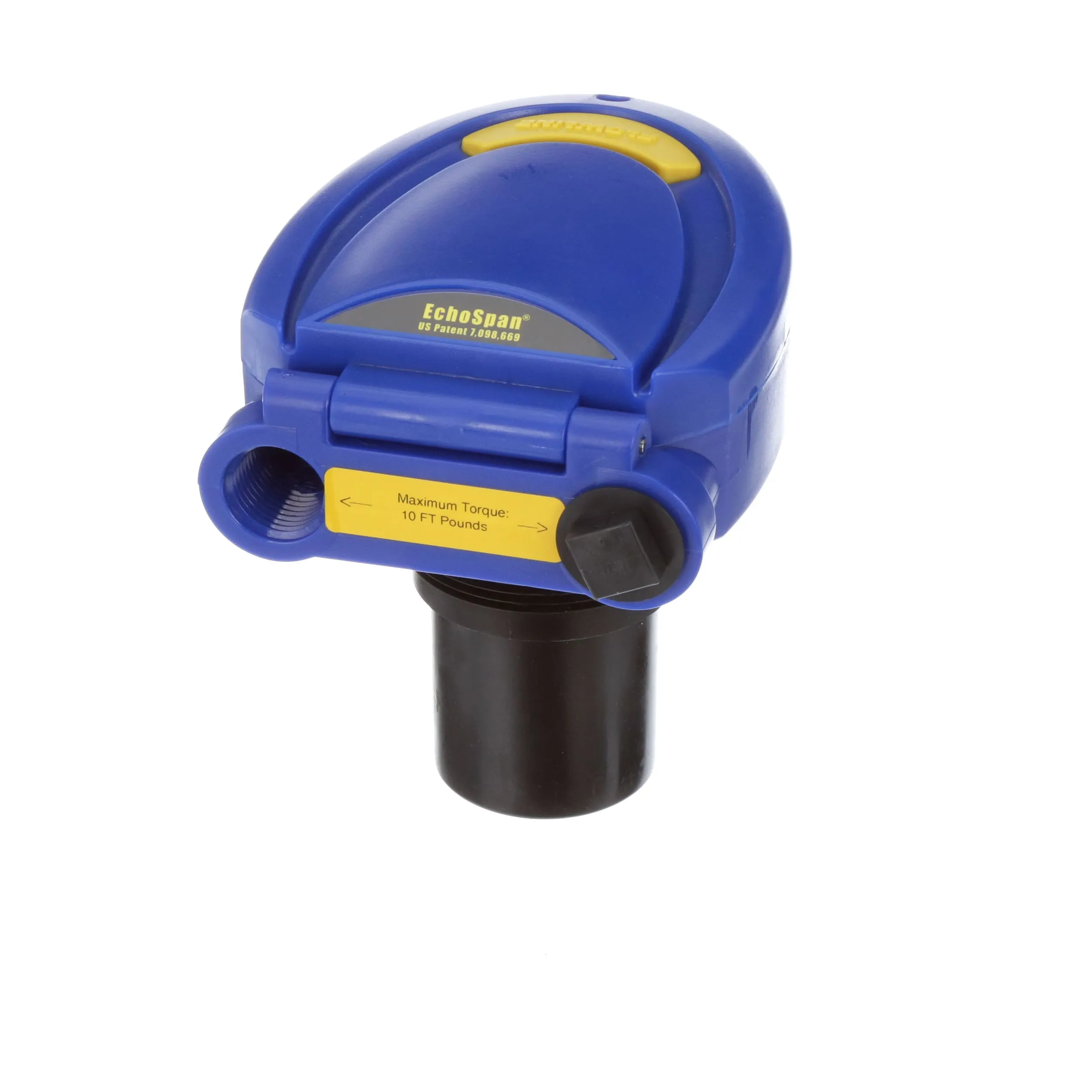

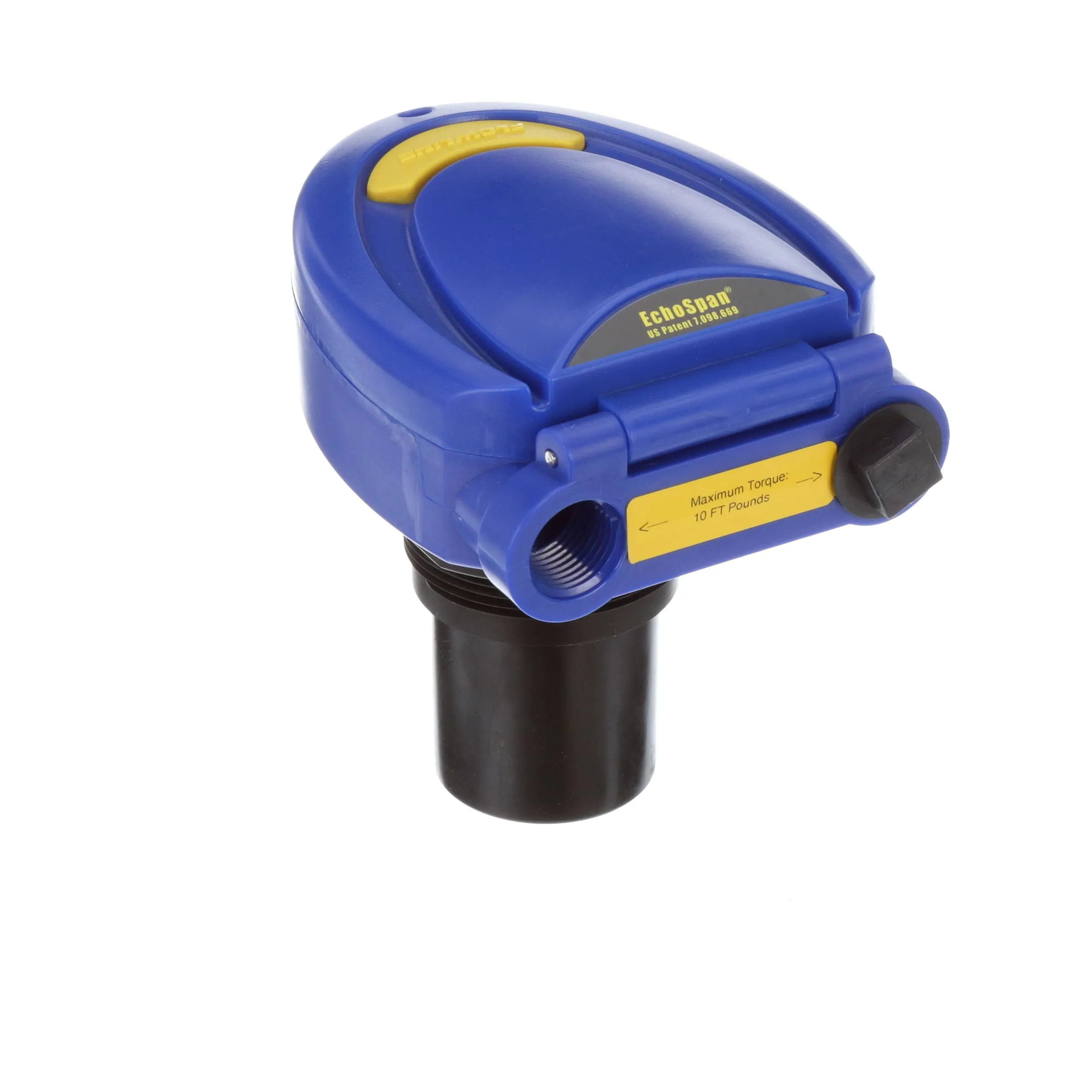

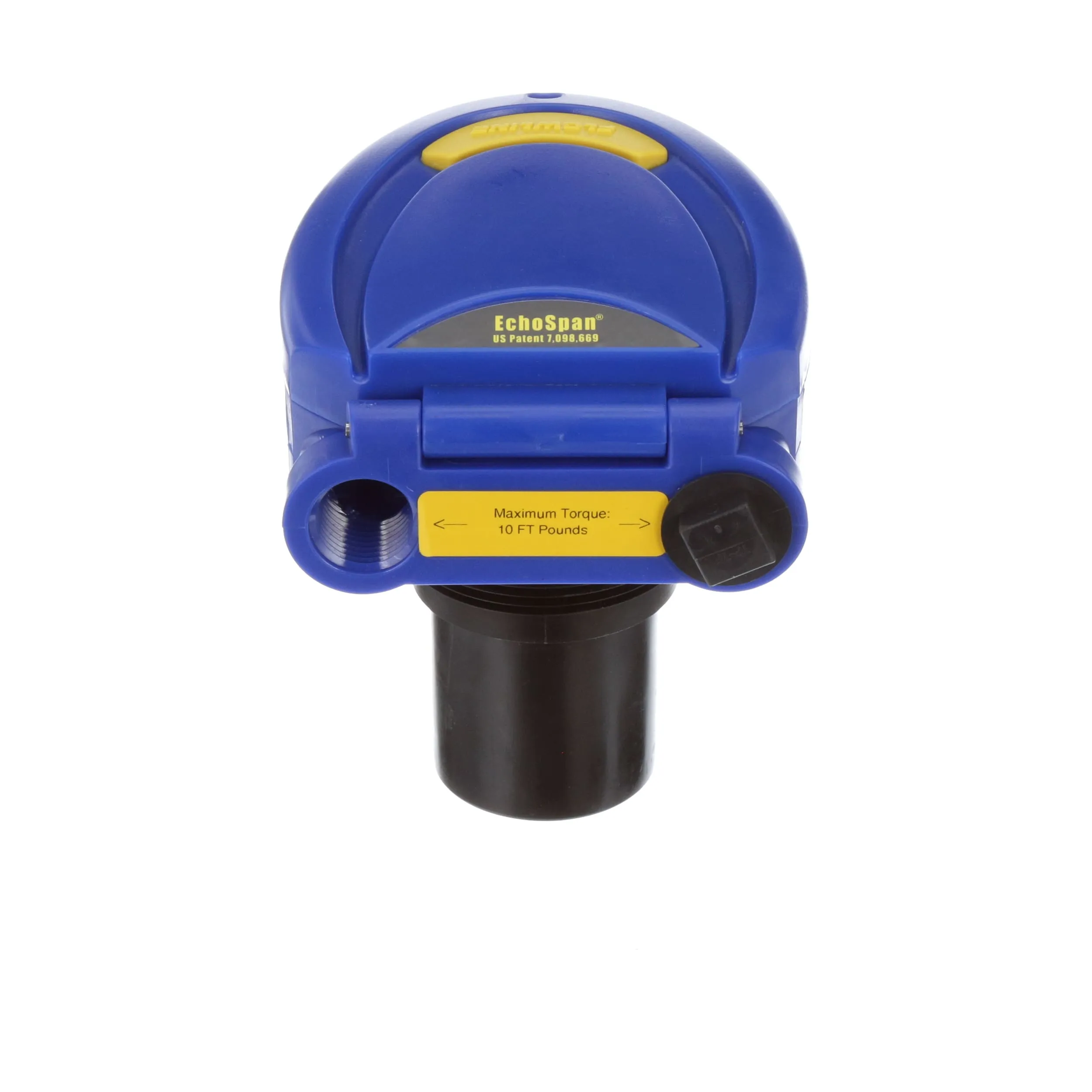

EchoSpan® Ultrasonic Level Transmitter. The general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8' (10 m) with a 4-20 mA signal output, and is configured via the integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications.
